WIRELESS VOLTAGE/TEMP LOGGER
LR8515
including Voltage Input and Thermocouple Types K and
T
| Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance. The Hioki LR8515 Wireless Voltage/Temperature Logger provides easy, wireless collection of a variety of data types, including voltage input and thermocouple types K and T, all in a single device. Data can be downloaded using Hiokiâs tablet and smartphone app (for Android devices). Search for âHIOKIâ and download the Wireless Logger Collector! |
Model No. (Order Code)
    Note: The LR8514 alone is not capable of making measurements. |
|---|
|
Key Features âĒ A single device to measure everything from the minute voltages of pyranometers or heat flow sensors to battery voltage to temperature |
|---|
 |
QR Code link to Hiokiâs Android app*
Scan this QR Code with an Android device to access the Google Play download page directly |
|---|---|
 |
A compact, 2-channel wireless temperature logger with voltage input as well as K and T thermocouple capability
For applications such as |
 |
A wireless logger whose data can be captured by a smartphone or PC
Built-in Bluetooth(R) wireless technology. Use your tablet or PC to collect data even as signals are being logged. No matter what time during measurement you collect the data, data is automatically merged together into one single file. *Pictured: LR8514 |
 |

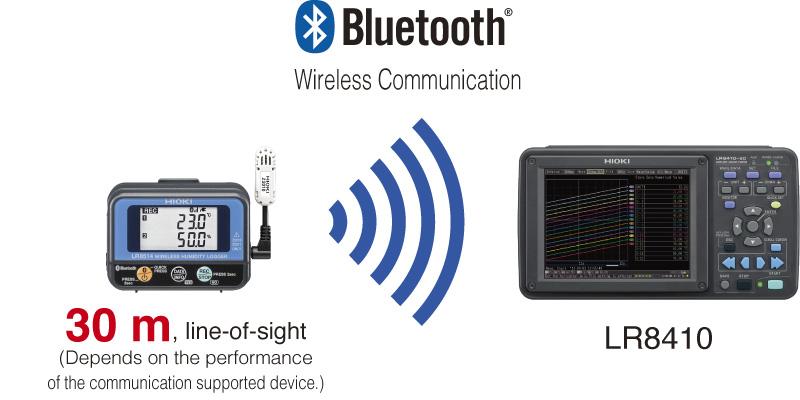

Real-time monitoring
By using the Hioki LR8410-20 to acquire data, you can view the waveforms in real time. Furthermore, previous waveforms can be viewed while the device is taking measurements. *Pictured: LR8514 |
 |
A compact wireless logger that you can place anywhere
Pocket size for installation anywhere. Installing a data logger in a switchboard or control panel has never been easier. The loggers are also useful for measuring in difficult-to-wire locations, like high places or on moving machines. |
 |
Power with AA batteries or an AC adapter
The logger will operate for about 7 days on two AA-size alkaline batteries. Since the batteries will last longer the less time the Bluetooth(R) function is operating, the instrument features a power-saving function that automatically turns on the Bluetooth(R) circuit during predefined time periods. While communications are disabled, data is reliably stored in the instrumentâs large built-in memory, which can hold 500,000 data points per channel. Use the AC adapter to record data over extended periods of time with peace of mind. |
Basic specifications (Accuracy guaranteed for 1 year, Duration of the post-adjustment accuracy guarantee for 1 year)
| Functionality | [Used as standalone product (Data collected manually) ] Windows PC or Windows tablet (CD-R with software included) Android smartphone or Android tablet terminal (Software can be downloaded free of charge from Google Play.) *Communication range varies with the performance of the computer or tablet (up to a line-of-sight distance of roughly 30 m) [Used as logging module (Real-time measurement) ] Device can be used as an LR8410 logging module to record and display data in real time and to control up to 7 units, Communication distance: 30 m |
|---|---|
| Number of channels | 2 ch (isolated; select voltage of thermocouple for each channel), Input terminals: M3 screw type terminal block |
| Measurement items | Voltage/ Thermocouple (K, T) |
| Maximum input voltage | Âą50 V DC, Max. inter-channel voltage 60 V DC |
| Measurement range | [Voltage] Âą50 mV to Âą50 V , Max. resolution 0.01 mV [Thermocouple] -200 ËC to 999.9 ËC, Thermocouples (K, T), Max. resolution 0.1 ËC |
| Measurement accuracy | [Voltage] Âą0.05 mV (50 mV range) [Thermocouple] Âą0.8 ËC (Thermocouple K -100 ËC to 999.9 ËC) *Reference junction compensation: Switchable between internal and external *Reference junction compensation accuracy: Âą0.5 ËC (When using internal compensation, add to thermocouple measurement accuracy.) *Temperature characteristics: Add (measurement accuracy à 0.1) / ËC to measurement accuracy. |
| Display items | Measurement value, date, time, number of recorded data, maximum value, minimum value, and average value |
| Functions | Alarm, Scaling, Recording operation hold function, Erroneous operation prevention, Comment recording function, Power saving function, Authentication function, Free run |
| Recording | [Capacity] 500,000 data items for each channel [Mode] Instantaneous value [Interval] 0.1 to 30 sec, 1 to 60 min, 16 selections |
| AC Adapter Z2003 (AC100 V to 240 V, 50 Hz/60 Hz), AA alkaline batteries (LR6) Ã2, External power DC5 V to 13.5 V (can also be supplied from USB bus power, with a conversion cable) | |

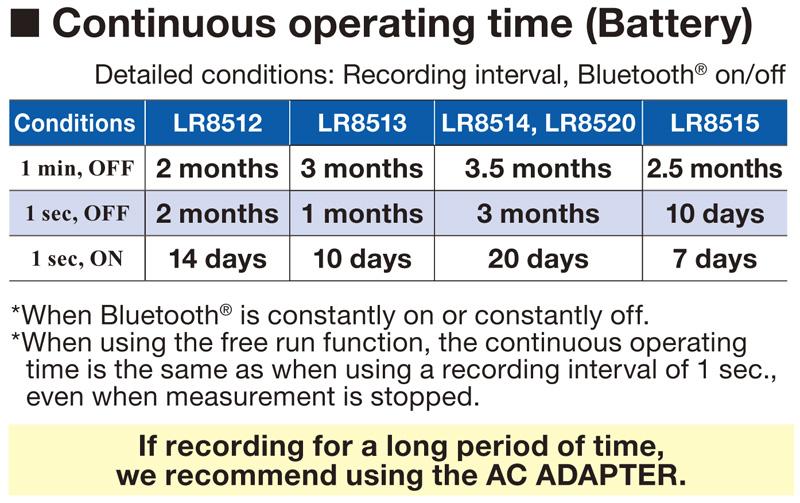

| Continuous operating time ([Capacity] 500,000 data items for each channel) (23ËC) | 2.5 months (Recording interval of 1 min, BluetoothÂŪ OFF), 7 days (Recording interval of 1 sec, BluetoothÂŪ ON), 2 days (Recording interval of 0.1 sec, during real-time measurement with the LR8410) |
| Dimensions and mass | 85 mm (3.35 in) W Ã 75 mm (2.95 in) H Ã 38 mm (1.50 in) D, 126 g (4.4 oz) (Not including the battery) |
| Accessories | CD-R Ã1 (Instruction Manual, Logger Utility, Wireless Logger Collector), Measurement Guide Ã1, Caution for Using Radio Waves à 1, AA alkaline batteries (LR6) Ã2 |
Countries and regions where wireless operation is currently supported (LR8515)
| Wireless certification | Japan, United States, Canada, Austria, Belgium, Bosnia and Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, United Kingdom, Thailand, Singapore, China, Taiwan, Australia, New Zealand, Chile, and Mexico |
|---|---|
| Exempt from the wireless regulations | Viet Nam, Hong Kong, Macao, India, Russian Federation, Colombia, Pakistan, and Georgia |
