POWER SOURCE UNIT
SM7860

Power Source Unit Ideal for MLCC Leakage Current
Measurement

The SM7860 series allows for setting the dual-line output voltage on 8 channels or 16 channels, and enables up to 32-channel of output.
The Hioki SM7860-5x/SM7860-6x series is a 32-channel, 500V / 1000V
power source for the Hioki SM7810 Super Megohm Meter, providing
positive and negative polarities required for MLCC test lines.



Key Features

• Support for multi-channel systems up to 32-channel output
• 8-channels or 16-channels dual-line output voltage setting
• Positive and negative polarities required for the MLCC test line included in a single unit
• Output ON/OFF and current limitation can be performed for each channel
• Support for the discharge of the charge capacitor
• Output voltage of 1 kV is available
• Large current output of 50 mA */channel allows for reducing the number of backup charges
* Output voltage of 1 kV is limited to 10 mA/channel

Model No. (Order Code)

SM7860-51 100V AC power supply
SM7860-52 100V AC power supply
SM7860-53 100V AC power supply
SM7860-54 100V AC power supply
SM7860-55 100V AC power supply
SM7860-56 100V AC power supply
SM7860-57 100V AC power supply
SM7860-58 100V AC power supply
SM7860-61 220V AC power supply
SM7860-62 220V AC power supply
SM7860-63 220V AC power supply
SM7860-64 220V AC power supply
SM7860-65 220V AC power supply
SM7860-66 220V AC power supply
SM7860-67 220V AC power supply
SM7860-68 220V AC power supply
GPIBRS232CNotCE

The Power Source Unit SM7860 is produced to order.
An output terminal connection cable*2 is required separately.
Please contact your local HIOKI representative, or if you need
to use a power supply voltage other than 100VAC or 220VAC.
*2 Output terminal cable
•Voltage output terminal connection cables are available in
various lengths to suit HIOKI measurement systems.
Please consult with your HIOKI representative.

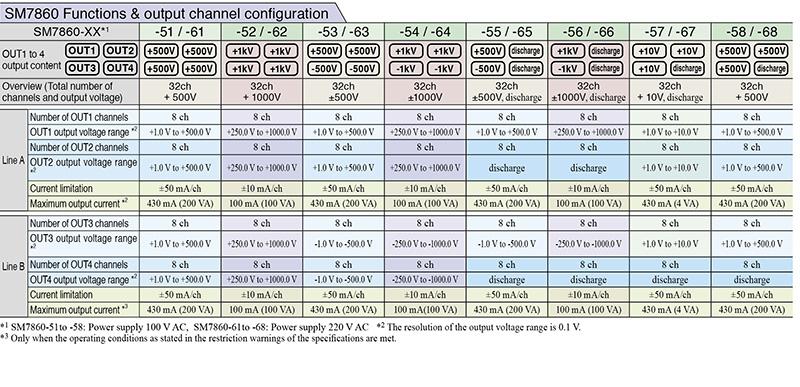

SM7860 Functions & output channel configuration

Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)

Supported device Super MΩ HiTester SM7810
Object to which voltage is applied: MLCC (the Multilayer Ceramic Capacitor)
Generation accuracy Output voltage accuracy: ±2% of set value ± 0.5 V (with no load)
Inter-channel error: ± 0.01 V or less (between outputs on the same line with no load)
Interfaces GP-IB, RS-232C, EXT I/O
Power supply SM7860-51 to -58: 100 V AC, SM7860-61 to -68: 220 V AC, 50/60 Hz, 860 VA
Dimensions and mass 425 mm (16.73 in) W × 249 mm (9.80 in) H × 581 mm (22.87 in) D, 47 kg (1657.9 oz)
[SM7860-57 / -67] : 34 kg (1199.3 oz)
Accessories Power cable ×1, Instruction manual ×1, Operating precautions ×1

See Overview for Functions & output channel configuration

Catalog: SUPER MΩ HiTESTER SM7810 POWER SOURCE UNIT SM7860 Download PDF  [1MB] English
