SWITCH MAINFRAME
SW1002
Multi-channel Battery Testing
| The SW1002 is a switch mainframe for housing the SW9001 or SW9002 Multiplexer Module to deliver quick, multi-channel battery testing. Connect up to 2 battery testing instruments to test OCV measurement, internal resistance measurement, and external potential measurement of battery cells. |
Model No. (Order Code)
     Note: Multiplexer Modules not included with the |
|---|
|
Key Features âĒ Switch between voltmeter and battery tester while testing |
|---|
 |
Multi-channel Battery Testing.Packed with Features to Ensure Accuracy

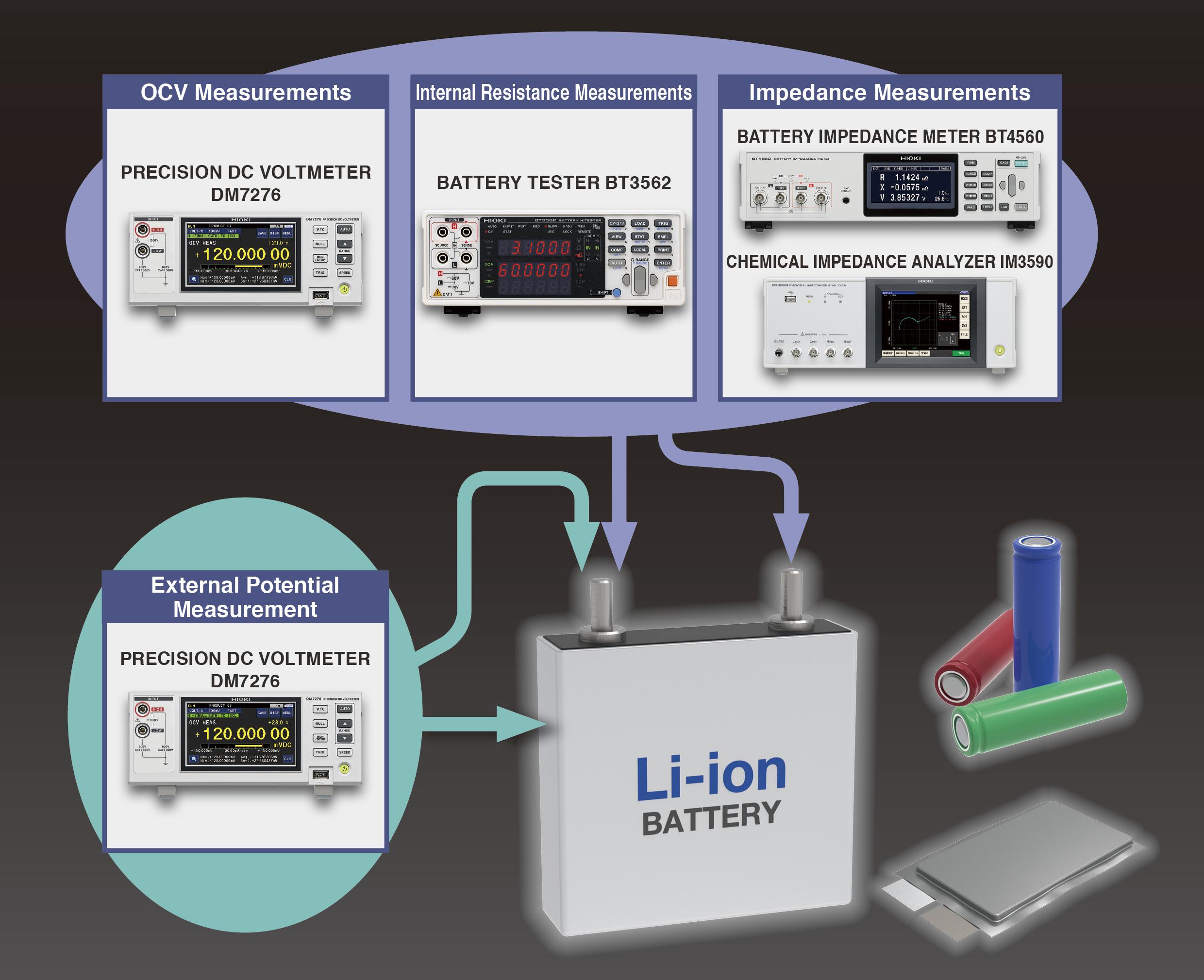

Combine the SW1002 with a battery testing instrument to measure a battery cell’s OCV (open circuit voltage), internal resistance, reaction resistance at low frequency, Cole-Cole plot, and external potential on multiple channels. |
|---|---|
 |

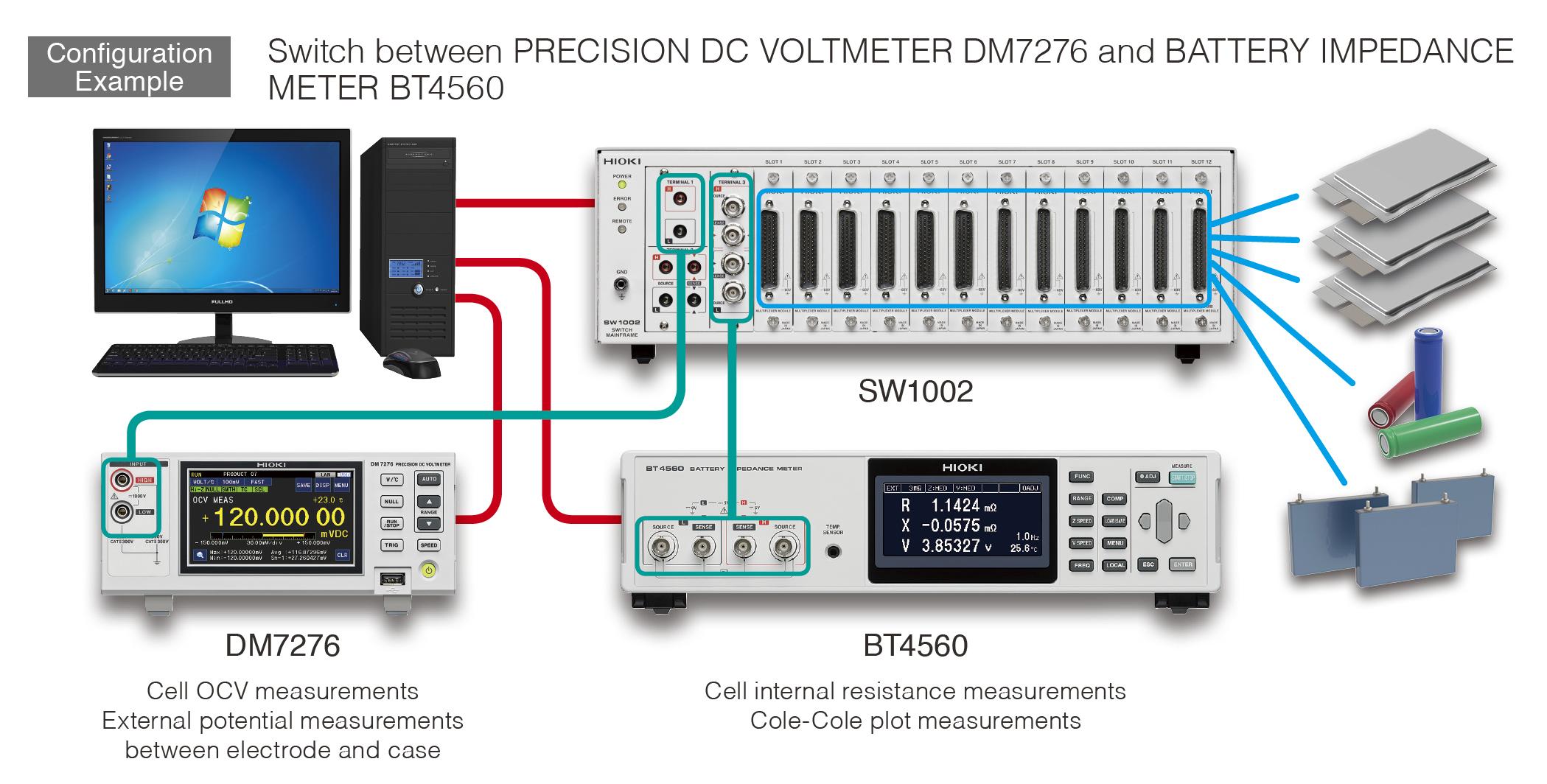

Connect Up to Two Measuring Instruments with Different Functions
Switch between two types of measuring instruments to perform a variety of measurements. |
 |

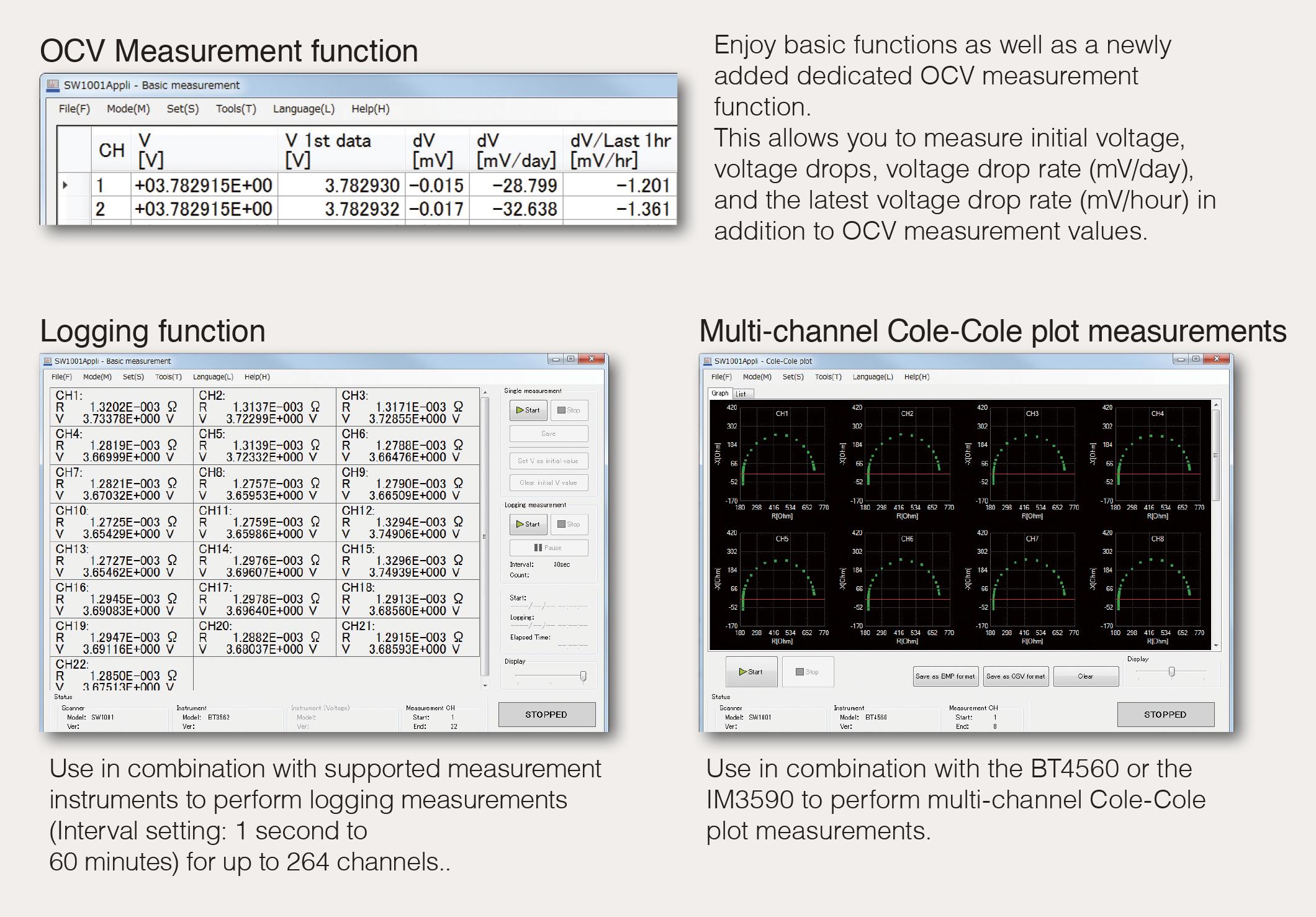

Battery Measurement Supported by Exclusive PC Application
Use the free, downloadable PC application to perform various measurements easily. |
 |

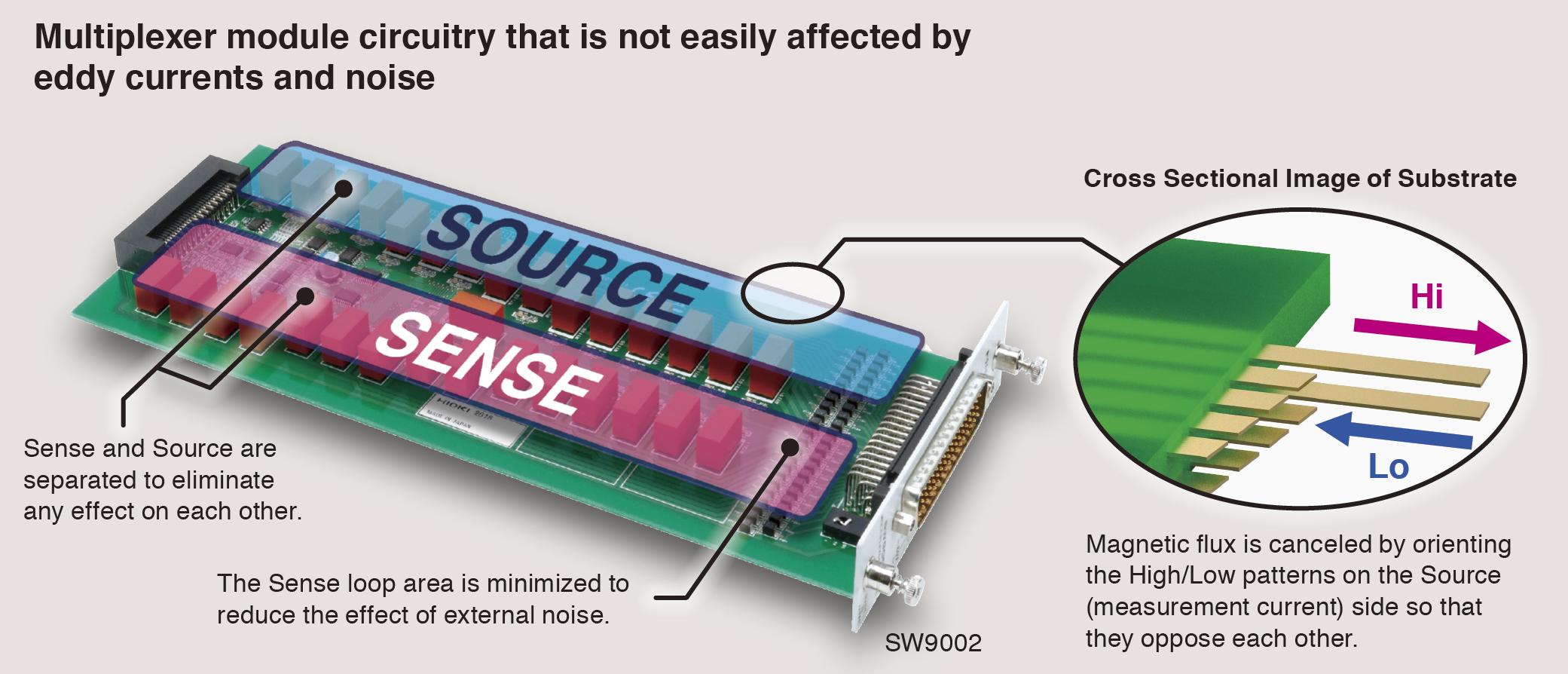

Circuit Design for Impedance Measurements
The effect on the detection signal is reduced by canceling the magnetic flux of the AC measurement current and separating the source from the sense. |
 |

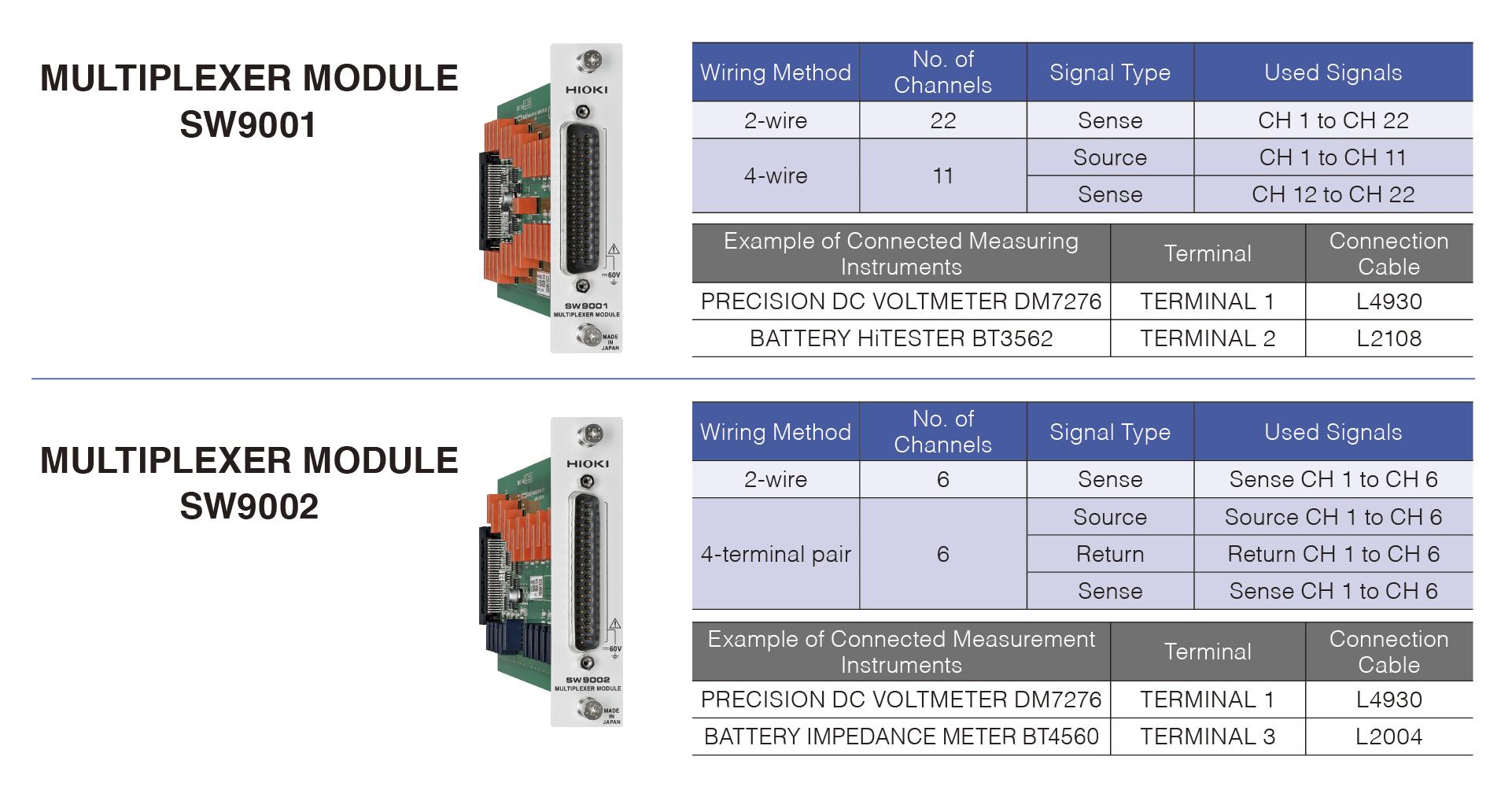

Choose from Two Types of Multiplexer Modules
MULTIPLEXER MODULE SW9001:This module supports 2-wire/4-wire configurations. Channel switching can be performed in 11 ms (excluding communication, command processing time, and contact bounce). MULTIPLEXER MODULE SW9002: This module supports 4-terminal pair configuration for use in combination with BT4560 and IM3590. 2-wire measurement is also possible (Sense only). Channel switching can be performed in 11 ms (excluding communication, command processing time, and contact bounce). |
 |

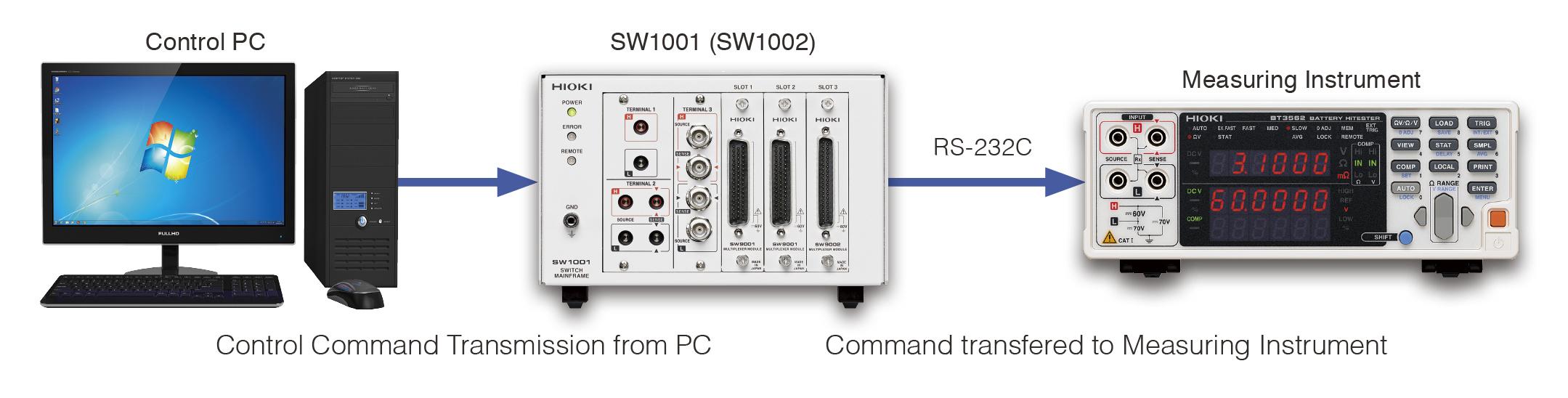

Communication Command Transmission Function Reduces the Number of PC Ports Needed
Normally, PC control requires two ports: one communication port for switching and one for the measuring instrument.
|
 |

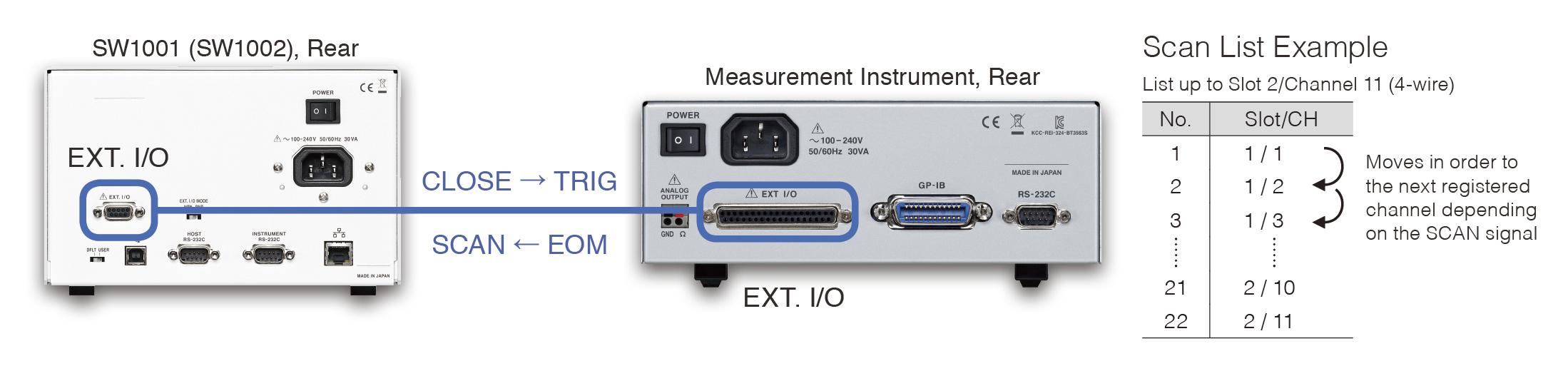

Scan Function
This function switches between channels in order based on the scan list registered in advance. |
Basic specifications
| Slots | 12 slots |
|---|---|
| Supported modules | MULTIPLEXER MODULE SW9001 (2-wire/4-wire) MULTIPLEXER MODULE SW9002 (4-terminal pair) |
| Connectible instruments | Max. 2 units 2-wire à 1 + 4-wire à 1, or 2-wire à 1 + 4-terminal pair à 1 |
| Max. input voltage | 60 V DC (Cannot connect to battery packs in excess of 60 V DC), 30 V AC rms, 42.4 V peak, Maximum rated voltage to ground: 60 V DC |
| Communication I/F | LAN, USB, RS-232C (for host, for measurement instruments) |
| Functions | Channel switching, wiring method, scan function, communication command transmission, channel delay, shield switching |
| Power supply | 100 to 240 V AC / 30 VA (50/60 Hz) |
| Dimensions and mass | 430 mm (16.93 in) W Ã 132 mm (5.20 in) H Ã 420 mm (16.54 in) D, 6.0 kg (211.6 oz) |
| Accessories | Power cord Ã1, instruction manual Ã1, usage precautions Ã1, USB driver CD Ã1 |
Basic specifications for MULTIPLEXER MODULE
| SW9001 | SW9002 | |
| Wiring method | 2-wire or 4-wire | 4-terminal pair (6-wire) or 2-wire |
| No. of channels | 22 channels (2-wire) / 11 channels (4-wire) | 6 channels (4-terminal pair) / 6 channels (2-wire) |
| Contact method | Armature relays | |
| Channel switching time | 11 ms (excluding measurement time) | |
| Max. allowable voltage | 60 V DC, 30 V AC rms, 42.4 V peak | |
| Max. allowable current | 1 A DC, 1 A AC rms | 1 A DC, 1 A AC rms (Sense), 2 A DC, 2 A AC rms (Source, Return) |
| Max. allowable power | 30 W (resistive load) | |
| Maximum rated voltage to ground | 60 V DC | |
| Dimensions and mass | 25.5 mm (1.00 in) W Ã 110 mm (4.33 in) H Ã 257 mm (10.12 in) D, 210 g (7.4 oz) | 25.5 mm (1.00 in) W Ã 110 mm (4.33 in) H Ã 257 mm (10.12 in) D, 196 g (6.9 oz) |
| Accessories | Instruction manual Ã1 | |
