SWITCH MAINFRAME
SW1001

Packed with Features to Assure Accuracy in
Multi-channel Battery Testing

The SW1001 is a switch mainframe for housing up to 12 units of SW9001 or
SW9002 Multiplexer Module to deliver quick, multi-channel battery testing.
Connect up to 2 battery testing instruments to test OCV measurement,
internal resistance measurement, and external potential measurement of
battery cells.

Model No. (Order Code)

SW1001 3 slots
LANRS232CUSB2CE

Note: Multiplexer Modules not included with the
Switch Mainframe SW1001 / SW1002. Modules must
be purchased separately.

Key Features

â€Ē Switch between voltmeter and battery tester while testing
â€Ē SW1001: max. 66 channels (2-wire) to max. 18 channels (4-terminal pair)
â€Ē Circuit-design-friendly for impedance measurements that minimize errors between channels (Effect: 0.01% f.s.*)
* For BT4560 100 mÎĐ range, R measurements, and a measurement frequency of 1 kHz
â€Ē For OCV measurement, internal resistance measurement, and external potential measurement of battery cells
â€Ē Measure battery modules up to 60 V DC


Multi-channel Battery Testing.Packed with Features to Ensure Accuracy

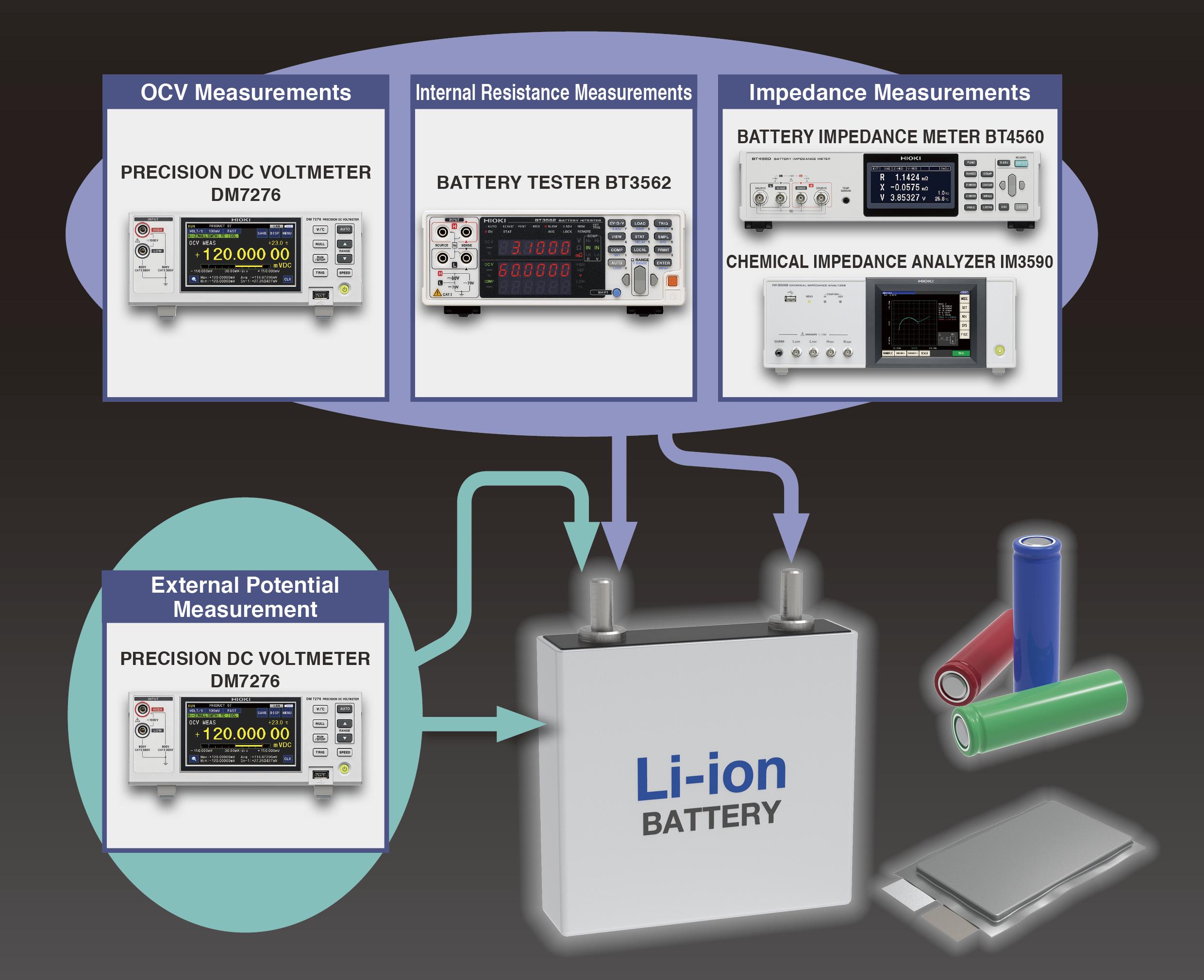

Combine the SW1001 with a battery testing instrument to measure a battery cell’s OCV (open circuit voltage), internal resistance, reaction resistance at low frequency, Cole-Cole plot, and external potential on multiple channels.

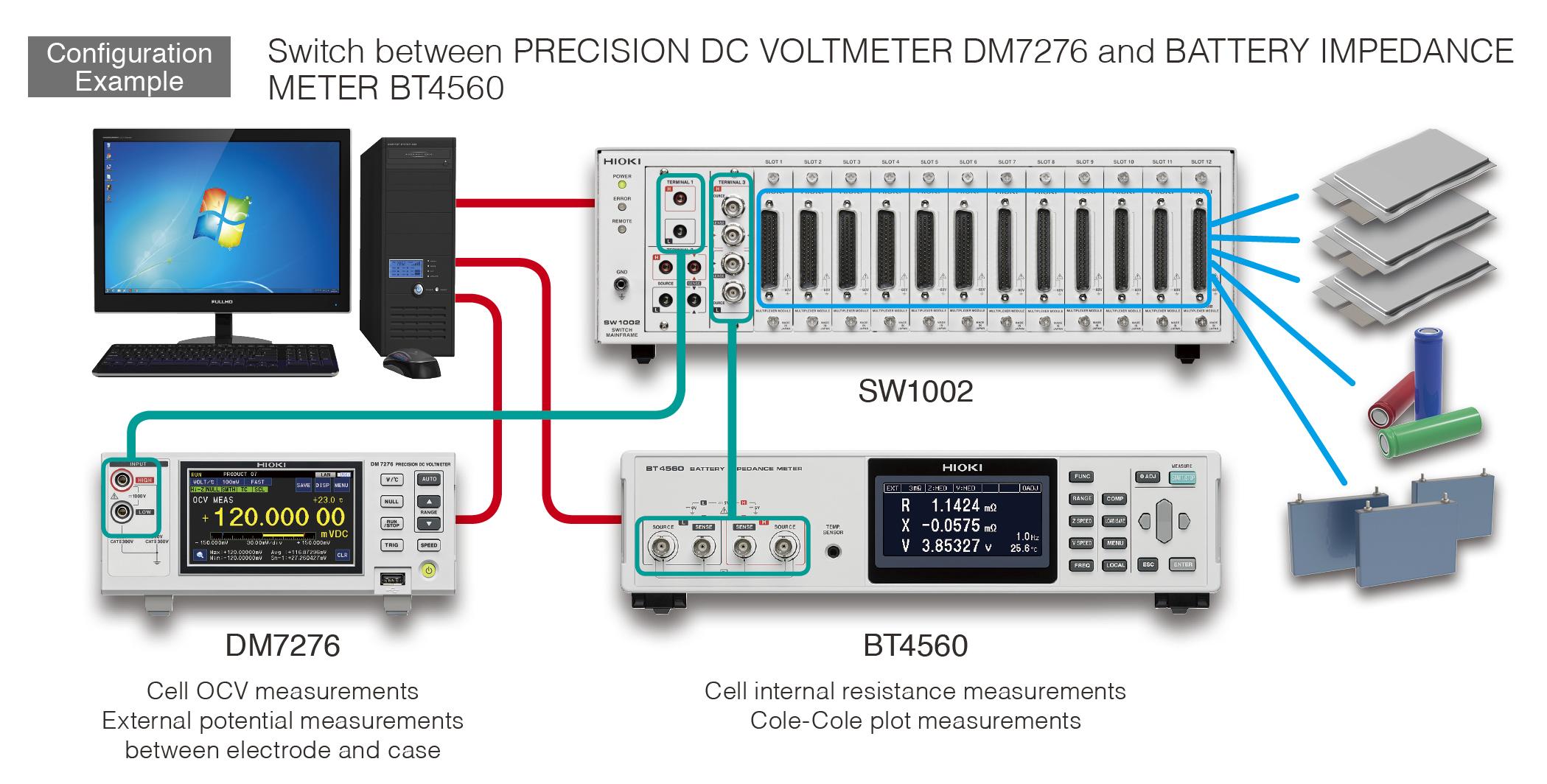

Connect Up to Two Measuring Instruments with Different Functions

Switch between two types of measuring instruments to perform a variety of measurements.

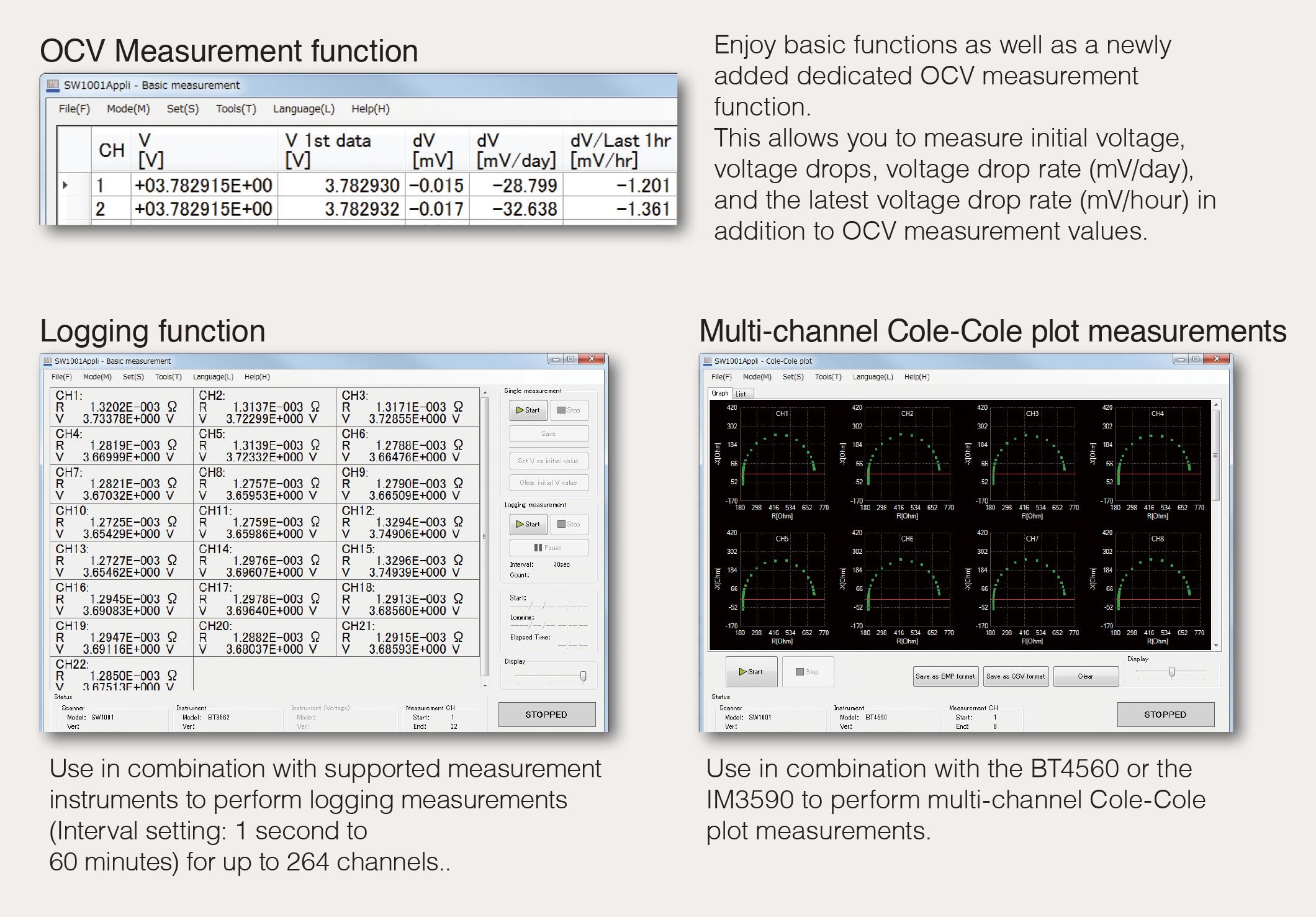

Battery Measurement Supported by Exclusive PC Application

Use the free, downloadable PC application to perform various measurements easily.

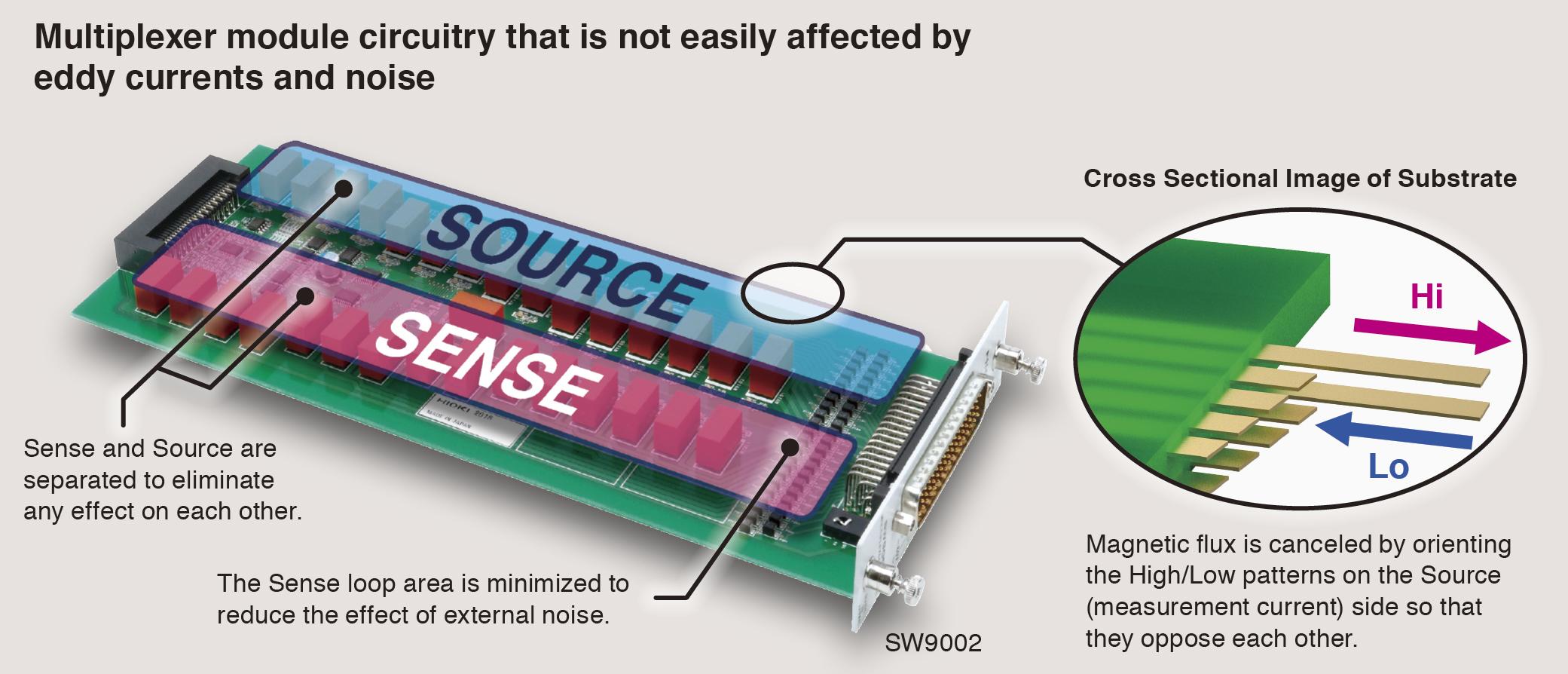

Circuit Design for Impedance Measurements

The effect on the detection signal is reduced by canceling the magnetic flux of the AC measurement current and separating the source from the sense.

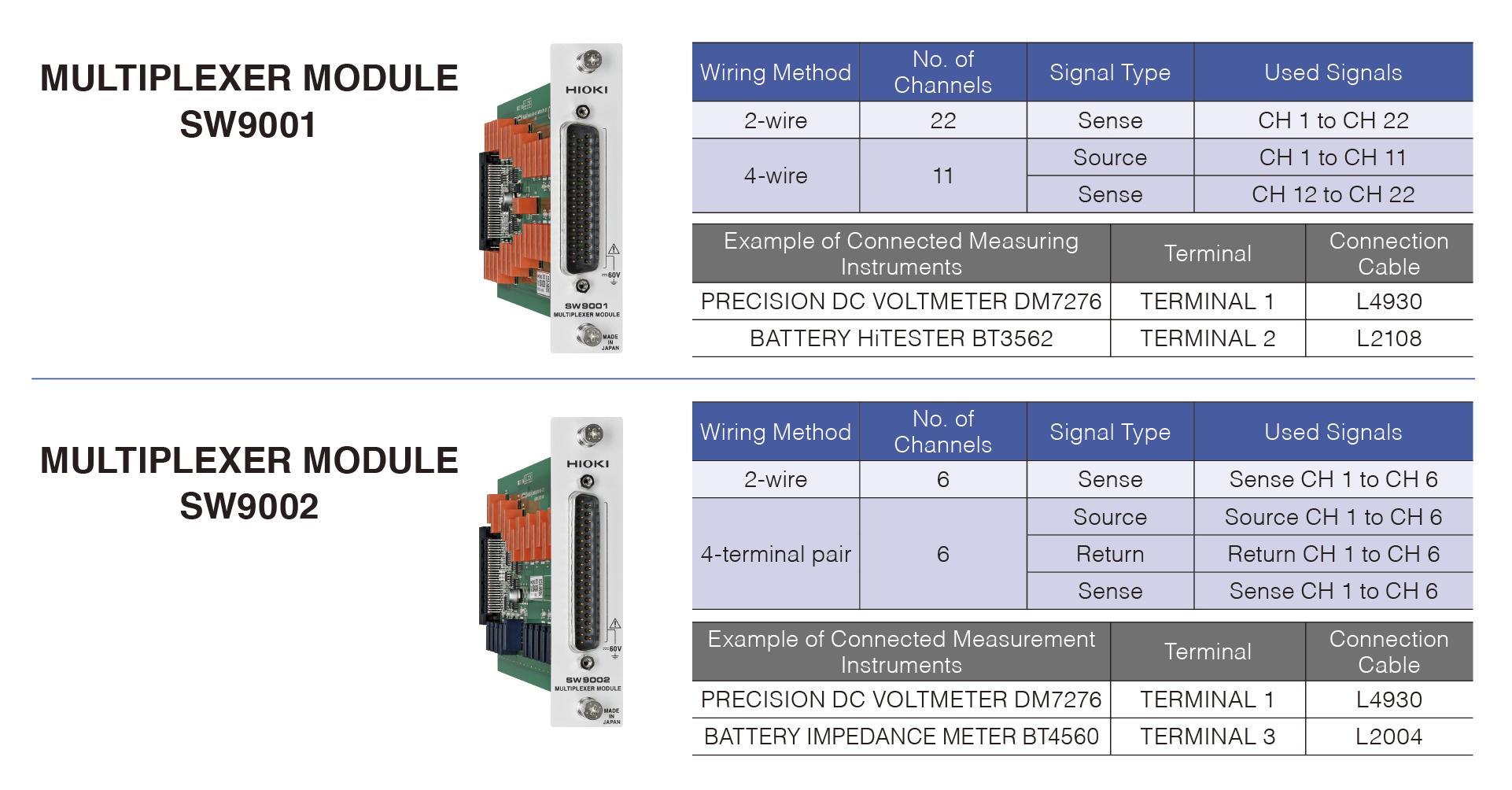

Choose from Two Types of Multiplexer Modules

MULTIPLEXER MODULE SW9001:This module supports 2-wire/4-wire configurations. Channel switching can be performed in 11 ms (excluding communication, command processing time, and contact bounce).

MULTIPLEXER MODULE SW9002: This module supports 4-terminal pair configuration for use in combination with BT4560 and IM3590. 2-wire measurement is also possible (Sense only). Channel switching can be performed in 11 ms (excluding communication, command processing time, and contact bounce).

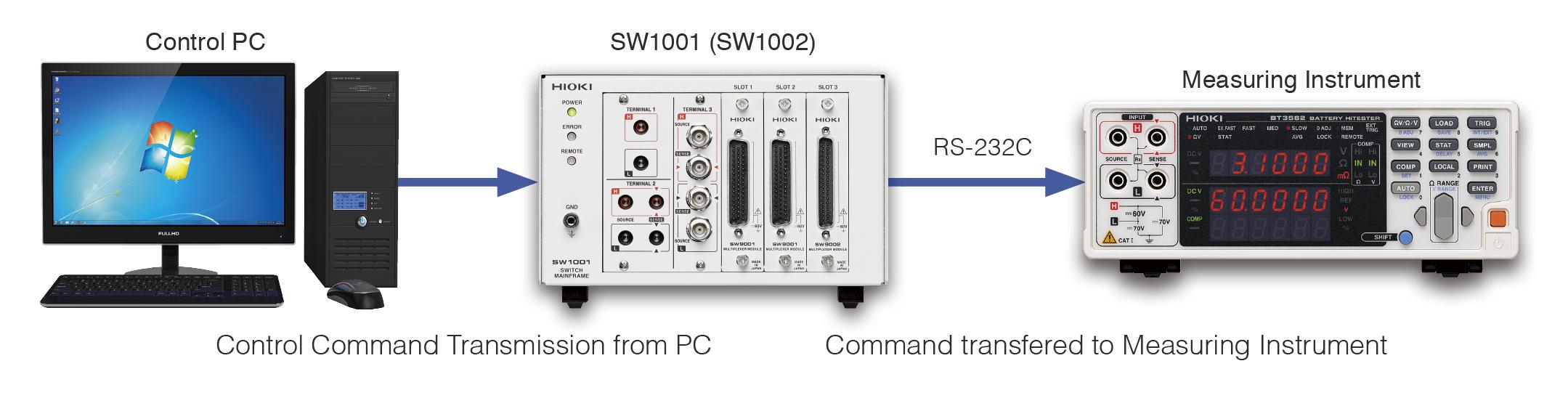

Communication Command Transmission Function Reduces the Number of PC Ports Needed

Normally, PC control requires two ports: one communication port for switching and one for the measuring instrument.
By using the communication command transmission function on the SW1001 the switch mainframe can transfer control commands from the PC to the measuring instrument (and responses can be received from the device). This allows you to reduce the number of communication ports used on the measuring instrument

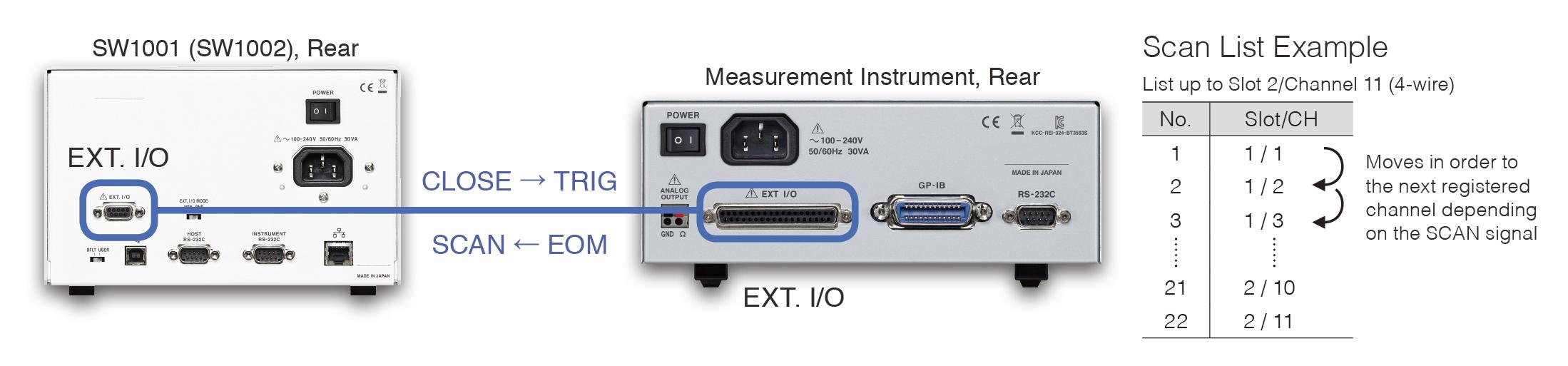

Scan Function

This function switches between channels in order based on the scan list registered in advance.
The switch mainframe and the EXT. I/O of the measuring instrument are connected. With the scan function, channel switching and trigger measurement can be synced for continuous scanning.

Basic specifications

Slots 3 slots
Supported modules MULTIPLEXER MODULE SW9001 (2-wire/4-wire)
MULTIPLEXER MODULE SW9002 (4-terminal pair)
Connectible instruments Max. 2 units
2-wire × 1 + 4-wire × 1, or 2-wire × 1 + 4-terminal pair × 1
Max. input voltage 60 V DC (Cannot connect to battery packs in excess of 60 V DC), 30 V AC rms, 42.4 V peak, Maximum rated voltage to ground: 60 V DC
Communication I/F LAN, USB, RS-232C (for host, for measurement instruments)
Functions Channel switching, wiring method, scan function, communication command transmission, channel delay, shield switching
Power supply 100 to 240 V AC / 30 VA (50/60 Hz)
Dimensions and mass 215 mm (8.46 in) W × 132 mm (5.20 in) H × 420 mm (16.54 in) D, 3.7 kg (130.5 oz)
Accessories Power cord ×1, instruction manual ×1, usage precautions ×1, USB driver CD ×1

Basic specifications for MULTIPLEXER MODULE

SW9001 SW9002
Wiring method 2-wire or 4-wire 4-terminal pair (6-wire) or 2-wire
No. of channels 22 channels (2-wire) / 11 channels (4-wire) 6 channels (4-terminal pair) / 6 channels (2-wire)
Contact method Armature relays
Channel switching time 11 ms (excluding measurement time)
Max. allowable voltage 60 V DC, 30 V AC rms, 42.4 V peak
Max. allowable current 1 A DC, 1 A AC rms 1 A DC, 1 A AC rms (Sense), 2 A DC, 2 A AC rms (Source, Return)
Max. allowable power 30 W (resistive load)
Maximum rated voltage to ground 60 V DC
Dimensions and mass 25.5 mm (1.00 in) W × 110 mm (4.33 in) H × 257 mm (10.12 in) D, 210 g (7.4 oz) 25.5 mm (1.00 in) W × 110 mm (4.33 in) H × 257 mm (10.12 in) D, 196 g (6.9 oz)
Accessories Instruction manual ×1
