DISPLAY UNIT
CM7291
Output to Advanced Recorder or Logger
Hioki clamp on meters are best-in-class measuring devices incorporating Hiokiâs expertise in current sensing technology. The CM7291 is the wireless receiving/display and output unit for the CT7600 and CT7700 AC/DC Current Sensor series, creating a standalone clamp meter for field use or enabling waveform signals to be output to a Hioki memory recorder or logger for further analysis.
āļāļļāļāļĨāļąāļāļĐāļāļ°āđāļāļāļēāļ°
- Send measured values to a smartphone or tablet using BluetoothÂŪ wireless technology
- Use the GENNECT Cross dedicated app to display and review measured values and waveforms in real time
- Power supply and signal output for Current Sensor CT7000 series
- Simultaneous dual display of the measured values, frequency, and output rate
- Four output formats to output data to loggers or other devices (via Display Unit)
- Supports AC adapter, AA alkaline batteries, and external power supply
Model No. (Order Code)
| CM7291 | For the CT7000 series, with built-in Bluetooth(R) wireless technology |
|---|
Note: CM7290, CM7291 cannot be used alone. Use with CT7000 series. When used in combination with the CT7000 sensor series, the frequency band for current display and waveform output is narrower than the sensor band.
Data can be downloaded to tablets and smartphones using Hiokiâs dedicated apps available from the Google Play or App Store. (CM7291) Search for âHIOKIâ and download the âGENNECT Crossâ app.
*iOS is a registered trademark of Cisco Technology, Inc. and/or its affiliates in the United States and certain other countries.
*iPhone, iPad, iPad mini, iPad Pro and iPod touch are trademarks of Apple Inc.
*Apple and the Apple logo are trademarks of Apple Inc. App Store is a service mark of Apple Inc.
*Microsoft, Windows, Windows Vista, and Excel are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
*Company names and Product names appearing in this catalog are trademarks or registered trademarks of various companies.
*The BluetoothÂŪ word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HIOKI E.E. CORPORATION is under license.
*For the latest information about countries and regions where wireless operation is currently supported, please visit the Hioki website.
Connect to Recorders, Data loggers, and Oscilloscopes

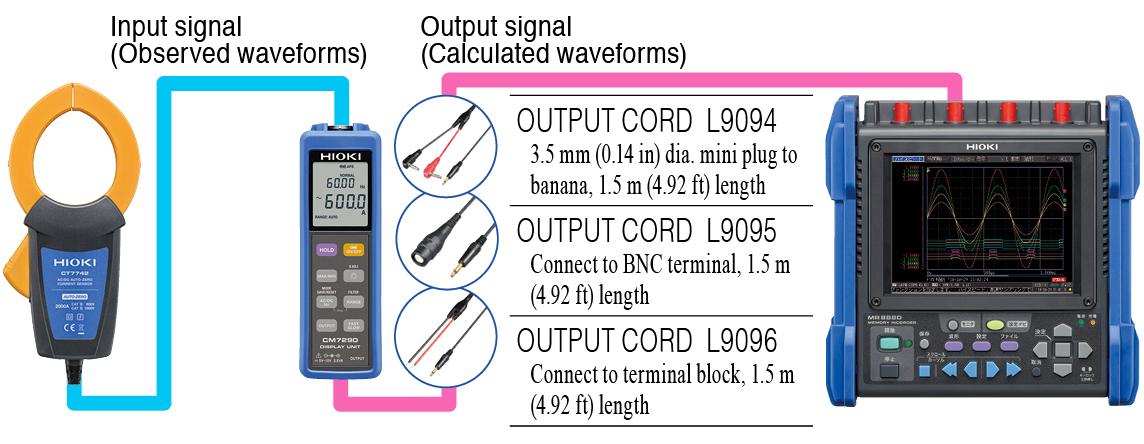

By connecting an AC/DC current sensor to the Display Unit CM7291, and then the system to a data logger or Memory HiCorder, you can output:
- A DC or AC (up to 5 kHz/10 kHz) current waveform as-is (using WAVE mode for waveform output)
- An analog signal generated by converting the input waveform to a series of RMS values (using RMS mode for RMS output)
- An analog signal generated by detecting the current waveformâs peak value (using PEAK mode for peak output
- An analog waveform generated by detecting the frequency of the current waveform (using FREQ mode for frequency output)
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
* Waterproof characteristics intended to maintain measurement function; measuring energized parts while instrument is wet will increase risk of electric shock.
| Sensor | CT7642, 7742 | CT7636, 7736 | CT7631, 7731 |
|---|---|---|---|
| Measurement parameters | DC, AC, DC+AC, Hz | ||
| Crest factor | 3 at 5000 count or 2.5 at 6000 count for AC and DC+AC | ||
| Output method | WAVE, RMS, PEAK, FREQ | ||
| Input connectors | HIOKI PL 14 | ||
| Output update time | PEAK— FAST: 0.02 s / NORMAL: 0.2 s / SLOW: 1 s FREQ— FAST: FAST: 0.2 s / NORMAL: 0.2 s / SLOW: 3.0 s (WAVE, RMS: analog output) |
||
| PEAK sensing duration | 2 ms or greater (during PEAK MAX/PEAK MIN and PEAK output) |
||
| Other functions | Auto range, Zero adjustment at power-up, Analysis display, Filter, Output amplification, Display value hold, Backlight , Auto-power save, Save settings, keypad lock | ||
| Typical accuracy (WAVE output DC) | Âą2.0% rdg. Âą10.8 mV (60.00 A range) |
Âą2.5% rdg. Âą30.8 mV (60.00 A range) |
Âą1.5% rdg. Âą5.8 mV (60.00 A range) |
| Typical accuracy (RMS output AC) | Âą2.3% rdg. Âą10.8 mV (60.00 A range) |
Âą2.8% rdg. Âą30.8 mV (60.00 A range) |
Âą1.8% rdg. Âą5.8 mV (60.00 A range) |
| Communication interface | Built in BluetoothÂŪ 4.0 LE, Display of measured values on an iOS or Android handset (CM7291 only) | ||
| Power supply | LR6 alkaline batteries (AA) Ã2, Continuous use: 16 h (backlight OFF and WAVE or RMS output, when used with CT7600s), Rated power 2.5 VA or AC adapter 9445-02/03 (100 to 240V AC), or 5 to 15 V DC external power supply, Rated power 2.5 VA |
||
| Dust and water resistance * | IP54 (with sensor connected and caps fitted to AC adapter and power connector) | ||
| Dimensions and mass | 52 mm (2.05 in)W Ã 163 mm (6.42 in)H Ã 37 mm (1.46 in)D, 220 g (7.8 oz) (including protector and battery) | ||
| Accessories | LR6 alkaline batteries Ã2, Protector Ã1, Instruction manual Ã1 | ||
Countries and regions where wireless operation is currently supported (CM7291)
| Wireless certification | Japan, United States, Canada, Austria, Belgium, Bosnia and Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, United Kingdom, Korea, Thailand, Singapore, Australia, New Zealand, Chile, and Mexico |
|---|---|
| Exempt from the wireless regulations | Viet Nam, Hong Kong, Macao, India, Russian Federation, Colombia, Pakistan, Peru, and Georgia |
āđāļāđāļāļāļēāļĨāđāļāļ
| āđāļāđāļāļāļēāļĨāđāļāļ: AC/DC CURRENT SENSOR CT7000 Series, DISPLAY UNIT CM7290, CM7291 | Download PDFÂ [4MB] | English |
| āđāļāđāļāļāļēāļĨāđāļāļ: GENNECT CROSS SF4071, SF4072 | Download PDFÂ [2MB] | English |
