FEB-LINE INSPECTION DATA
CREATION SYSTEM
UA1781

FLYING PROBE TEST 1/2 Data Generation Time With
New Platform

The UA1781 is dedicated software for use with bareboard testers, specifically for editing gerber data by embodying the Hioki know-how for substrate testing. Features include built-in commands that eliminate the need for specialized techniques.

Key Features
â€Ē Easily generate test points even on the inner layer for cavity structures (one-point test-point generation)
â€Ē Expanded touch panel functions for printed boards (Optional E7001)
â€Ē Support for built-in component boards
â€Ē High-precision relay-point deletion functionality that reliably delete only the unnecessary relay-points

Model No. (Order Code)

UA1781 Permanent license version

Cut Data Generation Time in Half With New Platform FEB-LINE UA1781

[F]lying probe test for [E]mbedded and [B]are boards = FEB-LINE

3-in-1 Editing Software for Bare Board Testing
Leverages the Hioki Know-how for Substrate Testing

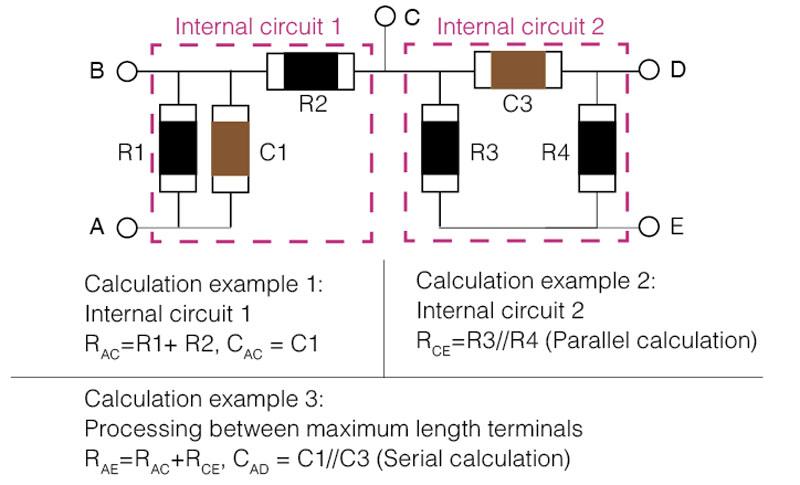

Also supports complex circuit structures built into components with the element synthesis command

Automatically calculate the RLC serial parallel status of the built-in components to calculate the measurement theory value using measurement points.
It is also possible to calculate the minimum combination that can measure all components.

Recommended for cavity substrates

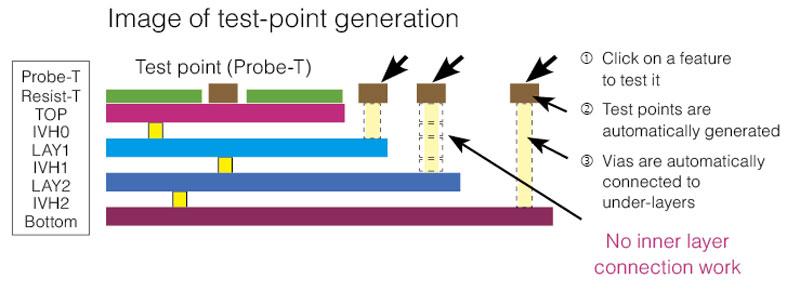

Easily generate test points (probing points) anywhere you like, in addition to those created automatically.
Create test points on the top surface, bottom surface, and even on the inner layer for cavity structures with just a single click.

Expanded touch panel functions for printed boards

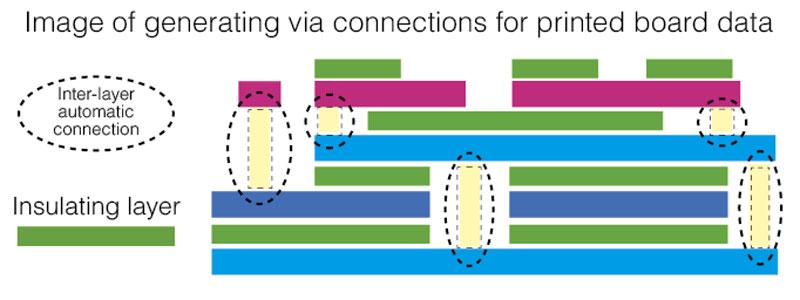

Interlayer automatic connections

Even in touch panels, ceramic substrates, or other printed circuit board data in which non-conductive layers are combined, vias are automatically connected based on the overlapping of conduction layers to perform net generation. DXF entry support makes line connection and paint/blank processing easy too.

Specifications Overview

Supported OS Windows 7 Professional 64-bit
Data entry function Gerber file, aperture file, drill file, U-ART database, DXF (optional E7001)
Test data generation function Net information generation, part test data generation, test point generation, relay-point deletion
Test data output format SFD, SFDX, NND, IND, CON, COT, COTX, PRTX, LAYOUT
Accessories Install CD, license key (USB), instruction manual
*Note: User is responsible for providing a computer, monitor, and other hardware.



Catalog: FEB-LINE INSPECTION DATA CREATION SYSTEM UA1781 Download PDF  [1MB] English
